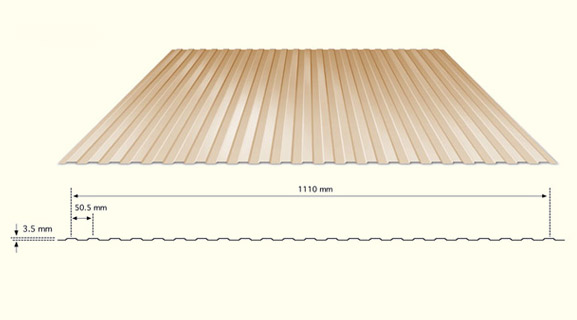

PANELRIB® 1110
Lightly Ribbed Wall Cladding & Liner Panel
LYSAGHT® PANELRIB® 1110 is an attractive, slightly-fluted walling and ceiling cladding profile suitable for many applications where a flat sheet would not be normally considered. Its longitudinal flutes provide rigidity and strength along the length of the sheet while retaining full flexibility across the width.
Base Metal Thickness
0.42 mm/ 0.45 mm
Depth
3.5 mm
Steel
ZINCALUME ® steel, COLORBOND® XRW steel *Standard offering includes COLORBOND® XRW steel but other options like COLORBOND Ultra steel, COLORBOND® XPD steel and COLORBOND® Metallic steel can also be used after consultation from Tata Steel Colors authorities
Steel Grade
G550 (550 MPa yield strength)
Total Coated Thickness
0.47 mm/ 0.50 mm
Effective cover width
1110 mm
Coating Class (min.)
ZINCALUME AZ150 (150g/m2) (55% Aluminium, 43.5% Zinc, 1.5% Si) as per AS1397 / IS15961 – with Super Durable Polyester COLORBOND®; steel XRW quality paint system of approved color conforming to AS/NZS 2728 type-4 / IS15965 class 3
Application
Wall cladding, Liner Panel, False ceiling
Quick & Easy Installation
The long length, light weight and use of self-drilling screws facilitate safe, easy and quick installation of PANELRIB® 1110 profile.
Attractive appearance
Slightly fluted ribs gives attractive look to the profile
Long Lasting
PANELRIB® 1110 is manufactured from Al-Zn alloy coated steel that offers excellent corrosion resistance and lasts up-to four times more than ordinary Zinc coated steel profiles.
Multiple installation options
PANELRIB® 1110 profile can be installed in both horizontal as well as vertical direction.
Excellent Spanning Capabilities
PANELRIB® 1110 is manufactured from high strength COLORBOND® & ZINCALUME® steel and provides excellent spanning capability resulting in better design freedom.
Improved Thermal Performance
PANELRIB® 1110 profile comes with THERMATECH™ Solar Reflectance Technology that lowers surface temperature by absorbing lesser heat from the sun. It keeps buildings cooler at reduced energy costs.
Surfmist
Headland
Pale Eucalypt
Cottage Green
Aquamarine
Sky Blue
Torres Blue
Toba BlueTM
Bare ZincalumeTM
Note: Above standard colour shades are given for guidance only. The Colour shades may look different due to print limitation. Please contact the nearest Tata Steel Colors sales office for any other colour shade enquiry. We would be glad to send an actual COLORBOND® colour sample or help with any other colour requirement.
