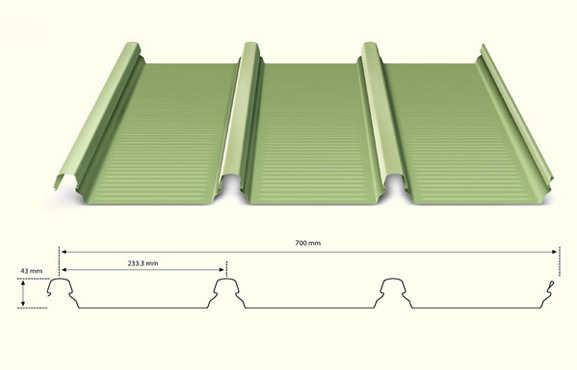

KLIP-LOK® 700
Concealed fixed Roof and Wall cladding Sheets
LYSAGHT® KLIP-LOK® 700 is a new generation concealed roof and wall cladding profile. It has a wider span and better uplift performance than all available comparable profiles. KLIPLOK® 700 has bold ribs that makes a strong statement rising from the flat pans that are cross micro fluted.
Base Metal Thickness
0.42 mm/ 0.45 mm
Depth
43 mm
Min. Roof Slope
2 degree
Steel
ZINCALUME ® steel, COLORBOND® XRW steel *Standard offering includes COLORBOND® XRW steel but other options like COLORBOND Ultra steel, COLORBOND® XPD steel and COLORBOND® Metallic steel can also be used after consultation from Tata Steel Colors authorities
Steel Grade
G550 (550 MPa yield strength)
Total Coated Thickness
0.47 mm/ 0.50 mm
Effective cover width
700 mm
Coating Class (min.)
ZINCALUME AZ150 (150g/m2) (55% Aluminium, 43.5% Zinc, 1.5% Si) as per AS1397 / IS15961 – with Super Durable Polyester COLORBOND®; steel XRW quality paint system of approved color conforming to AS/NZS 2728 type-4 / IS15965 class 3
Application
Roofing, Wall cladding
Concealed Fixed Roofing
The fixing clips are first secured to steel or timber supports, then LYSAGHT KLIP-LOK® 700 is laid directly onto the clips. With no exposed fasteners, the straight lines of your roof remain clean and smooth.
On-Site Roll-Forming
LYSAGHT KLIP-LOK® 700 can be manufactured on site using world-class mobile roll-forming technology, which not only gives single length from the ridge of the roof to the eave, but also helps to make it a leak-proof structure with better control over quality installation.
Simple, Low Cost Fixing
Long, straight lengths of LYSAGHT KLIP-LOK® 700 can be laid in place and easily aligned. Fixing with our new clips is simpler and faster than ever before. The smaller number of clips for a given area provides extra economy.
Wider Cover & better performance
Made of high tensile steel of 550 MPa yield strength, it has a wider span, with better uplift performance than all available comparable profiles.
Better architectural appeal
Bold ribs make appealing architectural appearance coupled with availability of multiple colour choices.
Surfmist
Headland
Pale Eucalypt
Cottage Green
Aquamarine
Sky Blue
Torres Blue
Toba BlueTM
Bare ZincalumeTM
Note: Above standard colour shades are given for guidance only. The Colour shades may look different due to print limitation. Please contact the nearest Tata Steel Colors sales office for any other colour shade enquiry. We would be glad to send an actual COLORBOND® colour sample or help with any other colour requirement.
